DCP Plates (Dynamic Compression plates)
Vet - 2.0 mm Dynamic Compression Plates, DCP,
Vet - 2.0 mm Dynamic Compression Plates, DCP,
Vet - 2.0 mm Dynamic Compression Plates, DCP,
Size - 2 mm (Dia)
No. of Holes (Length mm) -
4 (L22mm), 5 (L27mm), 6 (L32mm),
7 (L37mm), 8 (L42mm), 9 (L47mm),
10 (L52mm),12 (L62mm), 4 (L72mm),
16 (L82mm),18 (L92mm)
Vet - 2.7 mm Dynamic Compression Plates, DCP,
Vet - 2.0 mm Dynamic Compression Plates, DCP,
Vet - 2.0 mm Dynamic Compression Plates, DCP,
Size - 2.7 mm (Dia)
No. of Holes (Length mm) -
2 (L20mm), 4 (L36mm), 5 (L44mm),
6 (L52mm), 7 (L60mm), 8 (L68mm),
9 (L76mm), 10 (L84mm),11 (L92mm),
12 (L100mm), 14 (L116mm),16 (L132mm)
Vet - 3.5 mm Dynamic Compression Plates, DCP,
Vet - 2.0 mm Dynamic Compression Plates, DCP,
Vet - 3.5 mm Broad Dynamic Compression Plates
Size - 3.5 mm (Dia)
No. of Holes (Length mm) -
2 (L26mm), 3 (L38mm), 4 (L50mm),
5 (L62mm), 6 (L74mm), 7 (L86mm),
8 (L98mm), 9 (L 10mm),10 (L122mm), 11(L134mm), 12 (L146 mm), 13 (L158mm),
14 (L170mm)
Vet - 3.5 mm Broad Dynamic Compression Plates
Vet - 3.5 mm Broad Dynamic Compression Plates
Vet - 3.5 mm Broad Dynamic Compression Plates
Size - 3.5 mm (Dia)
No. of Holes (Length mm) -
4 (L60mm), 5 (L74mm), 6 (L88mm),
7 (L102mm), 8 (L116mm), 9 (L130mm),
10 (L144mm), 11 (L158mm), 12 (L172mm),
14 (L200mm)
Vet - 4.5 mm Narrow Compression Plates
Vet - 3.5 mm Broad Dynamic Compression Plates
Vet - 4.5 mm Broad Dynamic Compression Plate
Size - 4.5 mm (Dia)
No. of Holes (Length mm) -
3 (L55mm), 4 (L71mm), 5 (L87mm),
6 (L103mm), 7 (L119mm), 8 (L135mm),
9 (L151mm),10 (L167mm),11 (L183mm),
12 (L199 mm), 13 (L215mm), 14 (L231mm),
15 (L247mm), 16 (L263mm), 17 (L279mm),
18 (L295mm),
Vet - 4.5 mm Broad Dynamic Compression Plate
Vet - 3.5 mm Broad Dynamic Compression Plates
Vet - 4.5 mm Broad Dynamic Compression Plate
Size - 4.5 mm (Dia)
No. of Holes (Length mm) -
4 (L71mm), 5 (L87mm), 6(L103mm),
7 (L119mm), 8 (L135mm), 9 (L151mm),
10 (L167mm),11 (L183mm),12 (L199mm),
13 (L215mm),14 (L231mm),15 (L247mm),
16 (L263mm),17 (L279mm),18 (L295mm),
19 (L311mm), 20 (L327mm),

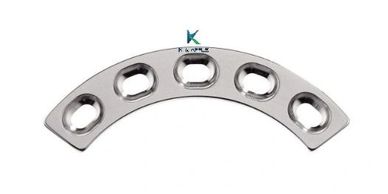

Vet - 1.5/2.0/2.4/2.7/3.5 mm Acetabular Plate
Vet - Triple Osteotomy Plate 2.7/3.5 mm, 45 ° (Left & Right)
Vet - 1.5/2.0/2.4/2.7/3.5 mm Acetabular Plate
Size - 1.5/2.0/2.4/2.7/3.5 mm (Dia)
Dia No. of Holes (Length mm) -
1.5mm 4 Hole (L20mm),
2.0mm 4 Hole (L19mm),
2.0mm 4 Hole (L24mm),
2.0mm 4 Hole (L27mm),
2.0mm 6 Hole (L33mm),
2.4mm 6 Hole (L34mm),
2.7mm 6 Hole (L33mm),
2.7mm 6 Hole (L36mm),
2.7mm 6 Hole (L40mm),
3.5mm 6 Hole (L42mm),
3.5mm 6 Hole (L48mm),
Vet - 2.0/2.7 mm Acetabular Plate
Vet - Triple Osteotomy Plate 2.7/3.5 mm, 45 ° (Left & Right)
Vet - 1.5/2.0/2.4/2.7/3.5 mm Acetabular Plate
Size - 2.0/2.7 mm (Dia)
No. of Holes - 5 & 6 Holes
Vet - Triple Osteotomy Plate 2.7/3.5 mm, 45 ° (Left & Right)
Vet - Triple Osteotomy Plate 2.7/3.5 mm, 45 ° (Left & Right)
Vet - Triple Osteotomy Plate 2.7/3.5 mm, 45 ° (Left & Right)
Size - 2.7/3.5 mm (Dia)
No. of Holes (Length mm) -
2.7 mm 5 Hole (L45mm),
2.7 mm 6 Hole (L53mm),
3.5 mm 5 Hole (L63mm),
3.5 mm 6 Hole (L75mm),
